Appliance Depot  |  SKU: CGU366P3TD1 (New)

Café 36" Professional Gas Rangetop With 6 Burners CGU366P3TD1

$4,047.00 $4,199.00
Shipping calculated at checkout.

Features

Product Highlights

Color-Matched Manifold
Get a coordinated look with a manifold that matches the rangetop's finish
Play Video

Superior Heat Distribution
The industry-exclusive Inspiral burner swirls the cooktop flame under cookware to more evenly spread heat from the center to the edges
Play Video

Two High-Heat Burners
Boil water quickly with two 18,000-BTU Power Boil burners that give you more cooking power
Play Video

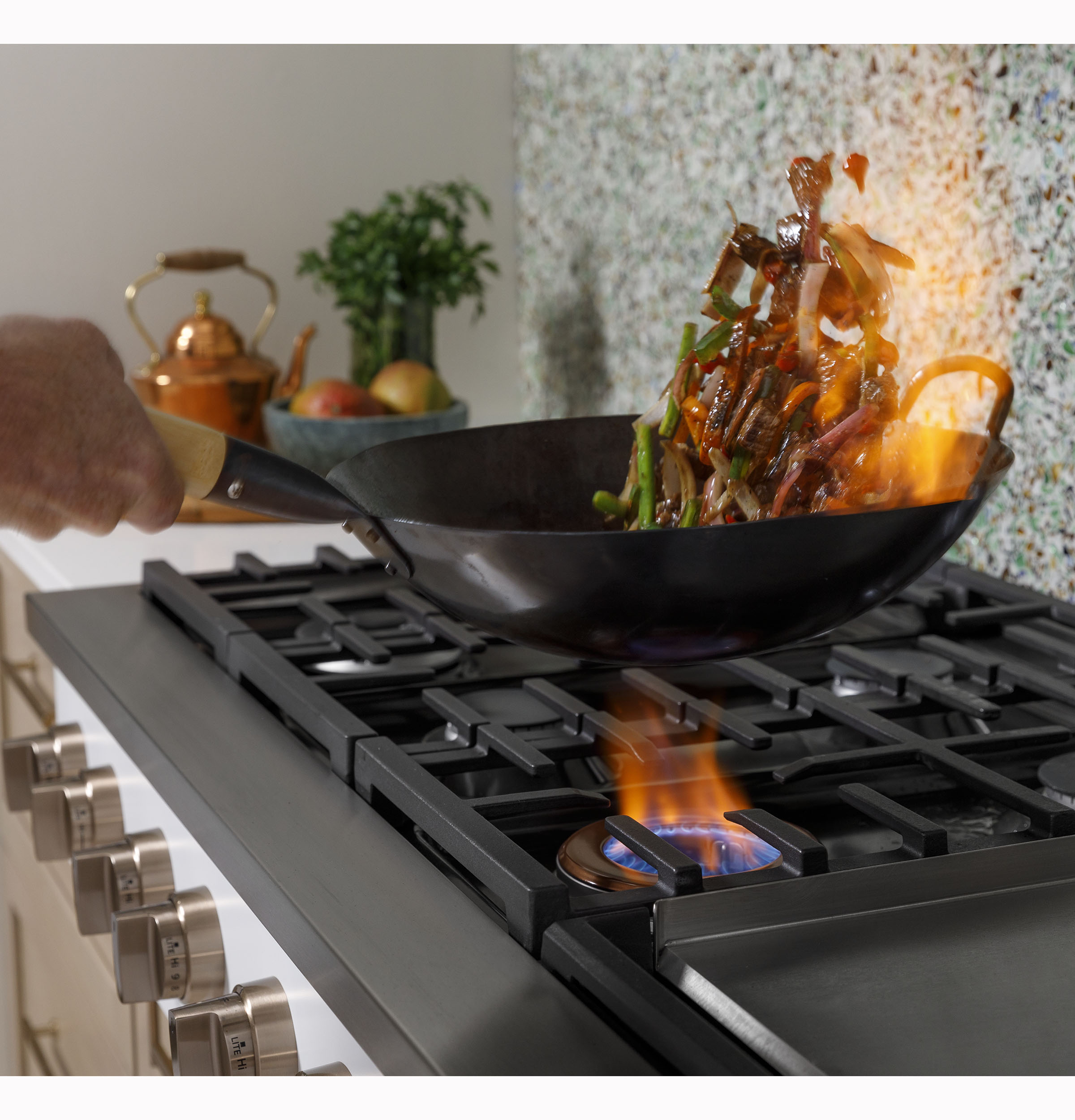

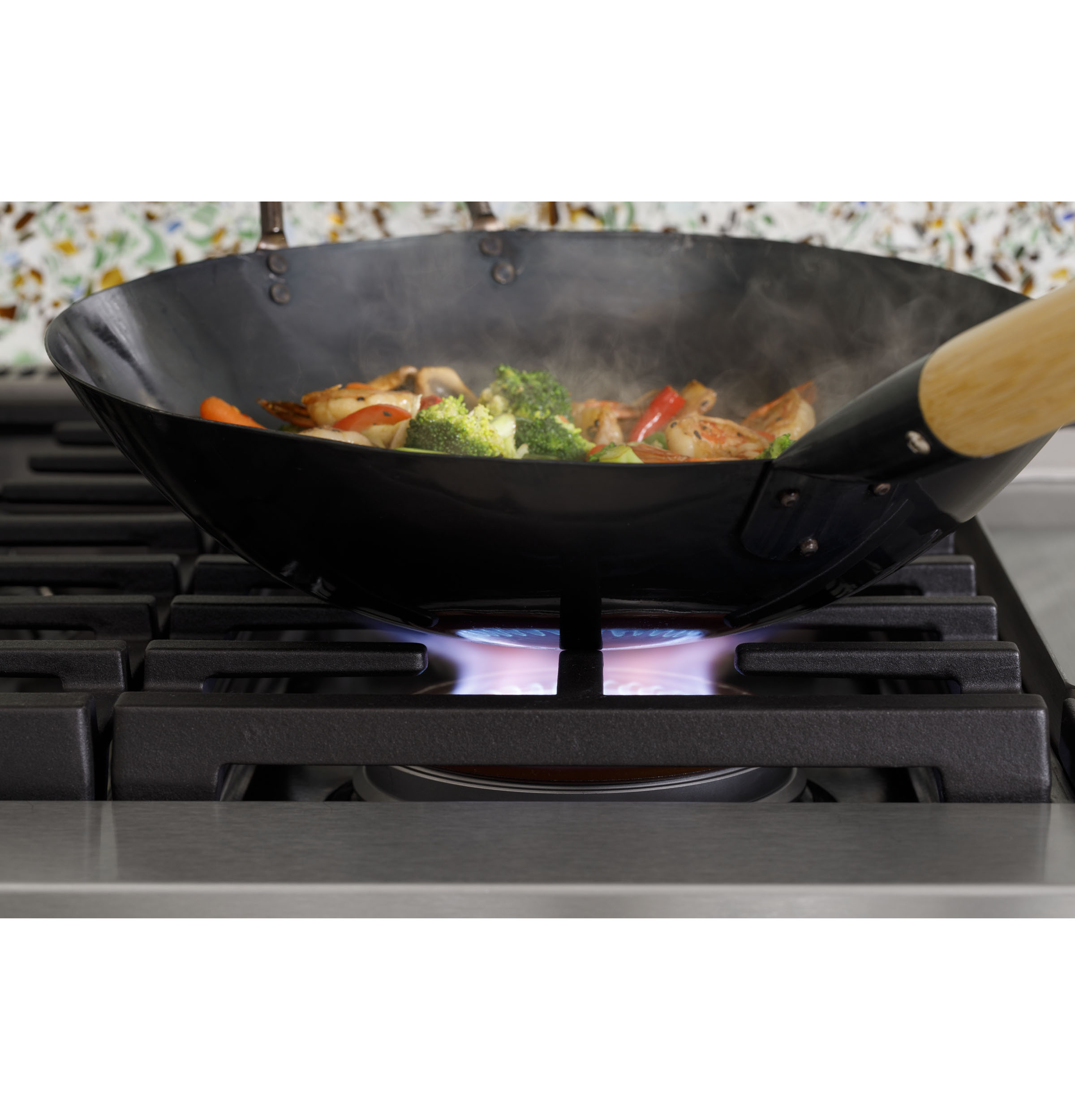

Inspiral™ Wok Grate
Perfect for specialty cookware like woks, the Inspiral grate is contoured to fit their shape, concentrating the Inspiral burner's heat for better cooking results.
Play Video

Features

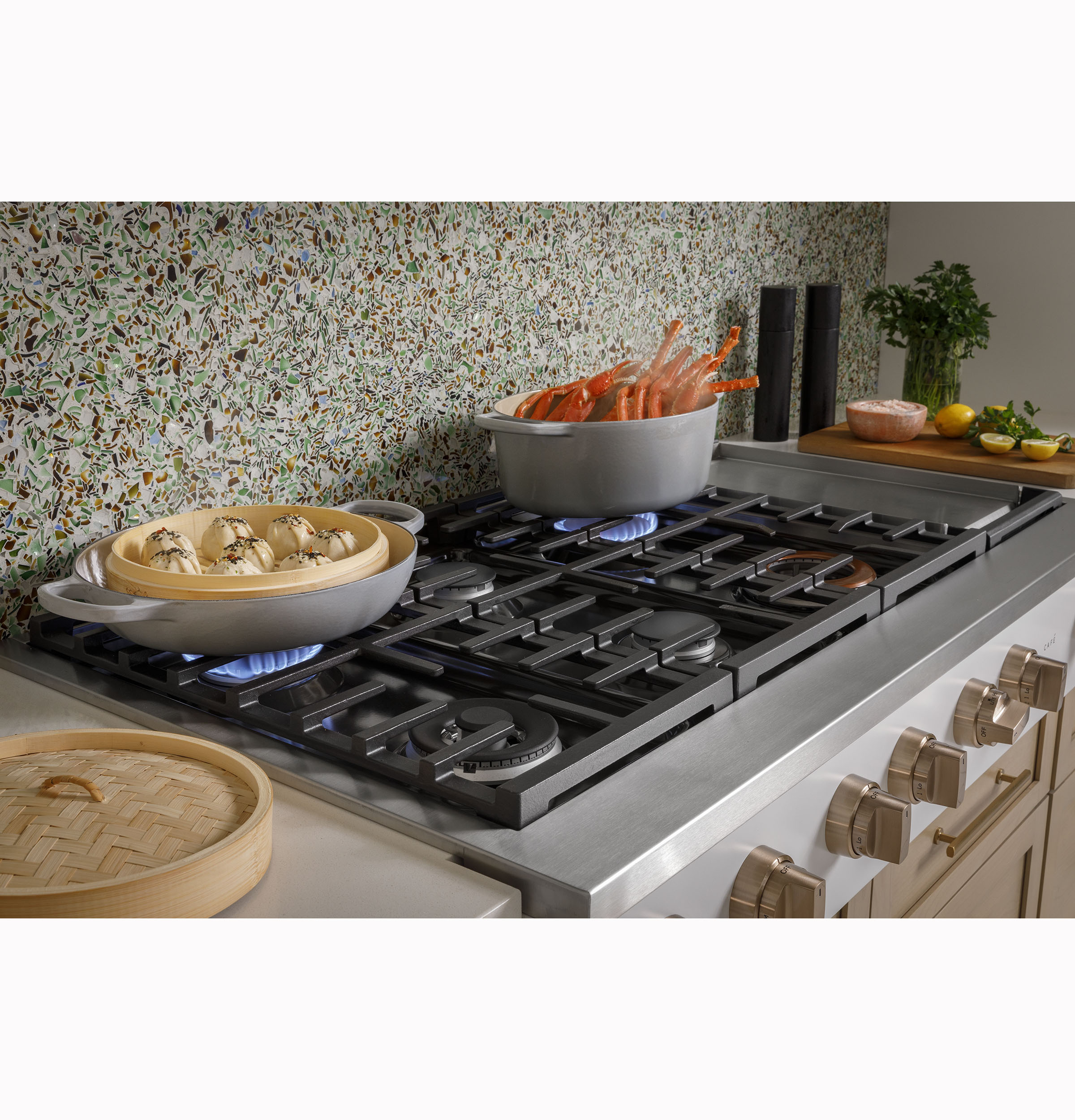

  • Versatile Cooktop
    The versatile cooktop on this commercial style range features an entire arsenal of burners that give you the right amount of heat and control to perfectly cook anything from delicate sauces to expertly seared meats.
  • Color-Matched Manifold
    Get a coordinated look with a manifold that matches the rangetop's finish
  • Superior Heat Distribution
    The industry-exclusive Inspiral burner swirls the cooktop flame under cookware to more evenly spread heat from the center to the edges
  • Multi-Ring Burner
    A versatile burner offers different-sized flame rings on a single burner element, so it's like having multiple burners in one
  • Two Griddle Burners
    Cook more at once with two 12,000-BTU powerful burners that can be used together or separately with an optional griddle grill accessory
Save MORE $$$

FEATURES

Burner - Right Rear 18,000 BTU
Fuel Type Natural Gas
Dishwasher Safe Knobs Yes
Control Location Upfront
Cooktop Type Continuous Grates
Burner - Left Rear 18,000 BTU
Automatic Re-Ignition Yes
Cooktop Burner Grate Material Heavy Cast
Burner - Right Front 10,000 BTU
Configuration 6 Burners
140 Deg. Simmer Burner All Burners - Adjustable
Control Type Manual
Simmer (1-9) Hi
Burner - Left Front 21,000 BTU Multi-ring Burner
Burner - Center 12,000 BTU Front / 12,000 BTU Rear
Extra Low Simmer All Burners - Adjustable
Valves (Degree of Turn) 270
Ignition System Electronic w/Auto Reignition
Cooktop Surface
Cooktop Burner Grate Features Continuous Grates
Dishwasher Safe
Matte Black
Porcelainized Cast Iron
Product Type Rangetop

APPEARANCE

Color Appearance Matte Black
Control Knobs Brushed Stainless
Dishwasher Safe
Professional-Style
Design Style Professional

WEIGHTS & DIMENSIONS

Cutout Height (in) 8
Cutout Depth (in) 25.25
Approximate Shipping Weight 163
Cabinet Width 36.000000
Net Weight 135
Overall Depth 27.5
Overall Width 35.875
Overall Height 8.5
Cutout Width (in) 35

POWER / RATINGS

Burner BTU Ratings (000's/BTU) - LP Gas (1) 18.0; (2) 15.0; (2) 12.0; (1) 9.1
Volts/Hertz/Amps 120v; 60Hz; 15A
Hertz 60
Burner BTU Ratings (000's/BTU) - Natural Gas (1) 21.0; (2) 18.0; (2) 12.0; (1) 10.0
Electrical Requirements 120V

ACCESSORIES

High Altitude Kit Natural Gas: WB28X39728; LP: WB28X39729
Factory-installed island backguard Yes
Optional Backguard 12" stainless steel backsplash (UX12B36PSS)
30"-36" adjustable stainless steel backsplash with warming shelf (UXADJB36PSS)
Conversion Kit Included - Nat. Gas to LP
Reversible Griddle/Grill Accessory UXPRRGG
Optional Kits CXPR6HKPTBT Brushed Black
CXPR6HKPTBZ Brushed Bronze
CXPR6HKPTCG Brushed Brass
CXPR6HKPTCU Brushed Copper
CXPR6HKPTFB Flat Black
CXPR6HKPTSS Brushed Stainless
Griddle Cover WB34X39889

WARRANTY

Parts Warranty Limited 1-year entire appliance
Labor Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details

CERTIFICATIONS

Claims & Certifications ADA Compliant
California Prop 65
CSA
View Chemical Content Reports
