Appliance Depot | SKU: AZ65H07DAB (New)

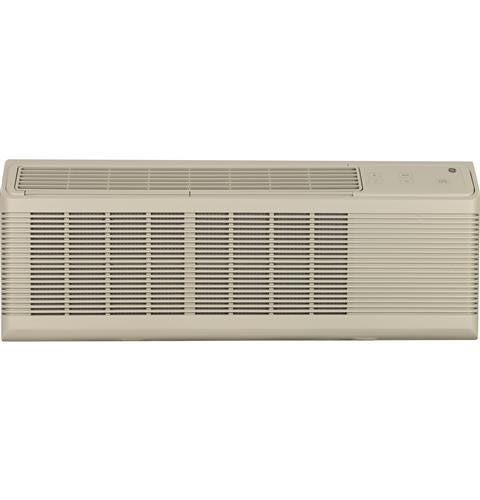

GE Zoneline® Heat Pump Unit, 230/208 Volt AZ65H07DAB

Name: GE Zoneline® Heat Pump Unit, 230/208 Volt AZ65H07DAB
Brand: Appliance Depot
SKU: AZ65H07DAB (New)
Price: 1329.00 USD
Availability: InStock

$1,329.00

Shipping calculated at checkout.

Features

Cooling capacity
7,100/6,900 BTU

Energy efficiency
13.0/13.0 EER

Dehumidification
1.7 pints/hour

Reverse heat cycle
6,200/6,100 BTU

Heat pump efficiency
4.0/4.0 COP

Indoor fan CFM (high/low)
409/250

Fresh air vent CFM (fully open high fan)
38

Owners Manual
Quick Specs
Installation Guide

- POWER / RATINGS
Cooling - Watts	545/530
Power Factor	96
Voltage (MAX)	230.0
Cooling - Amperes; L.R.	13.5
Cooling - Amperes; F.L. - Cooling	2.5/2.7
Voltage (MIN)	208.0
Heating - Reverse Cycle - COP	4.0/4.0
Heating - Reverse Cycle - Heater Amps	2.1/2.2
Heating - Reverse Cycle - Heater Watts (max. connected load)	450/440
- CAPACITY
CFM Indoor Fan High	409
CFM Indoor Fan Low	250
Vent CFM (high fan at zero ESP)	38
Cooling BTUH (MIN)	14900.0
Cooling EER (BTUH / Watt)	13.0/13.0
Dehumidification (pts./hr.)	1.7
Cooling BTUH (MAX)	6900.0
Heating - Reverse Cycle - BTUH	6200/6100
- FEATURES
Louver Style	Reversible

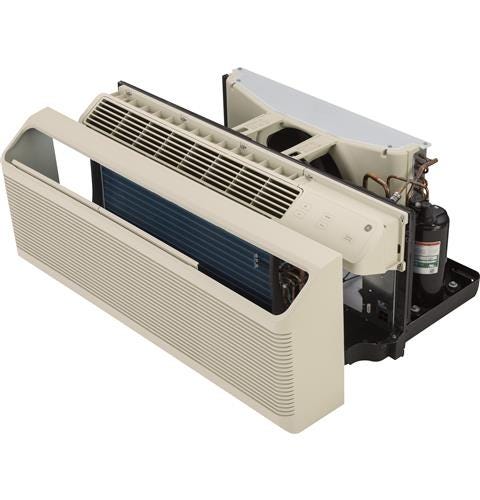

Chassis Type	Slide-In
Rotary Compressor	Yes
Fan Speed Control	Yes
Electronic Micro Computer Control	Yes
Fan Motor	2
Zoneline Features	"Smart Fan" Fan Cycle Control Heat Sentinel Freeze Sentinel Automatic Indoor Frost Control Universal Heaters Quick Heat Recovery 3-Stage Heating Design Heat Pump with Resistance Heat Backup Heat Pump with Supplemental Resistance Heat Automatic Emergency Heat Auto Power Recovery Reverse Cycle Defrost Remote Thermostat Compatibility Central Desk Control Compatibility Proportional - Integral ID Airflow Random Twist/Length Segment Tangential Blower Weather Protected Electrical Components "Sleep" Mode LCDI Power Cord
Venting Features	Concealed Manual Vent Control Vent Air Filter Outdoor Vent Control - 3 Positions
Temperature Limiting	Electronic 7-Step
Sensible Heat Ratio	79%

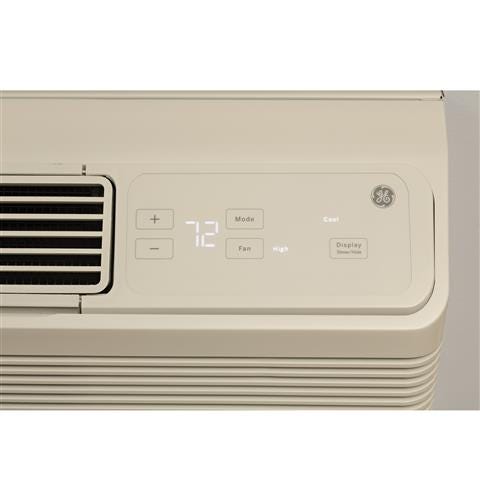

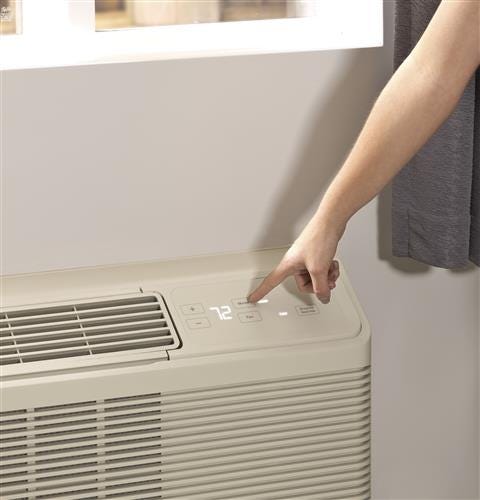

Control Type	Standard Microcomputer Tactile touch pad with LED Display
Fan Cycle Switch	Yes
Fan Speed Selections	Hi/Low Cooling Hi/Low Heating Hi/Low Fan Only
Temperature Range	60 - 85 F

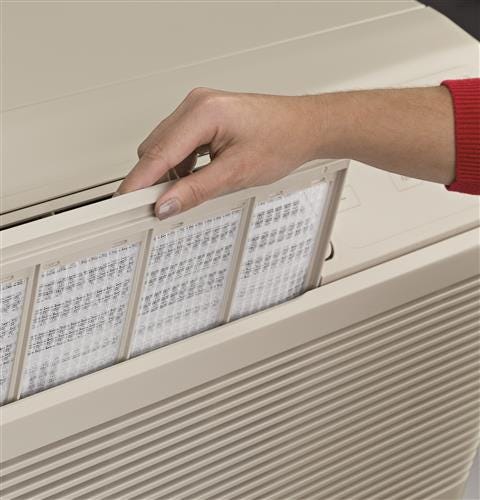

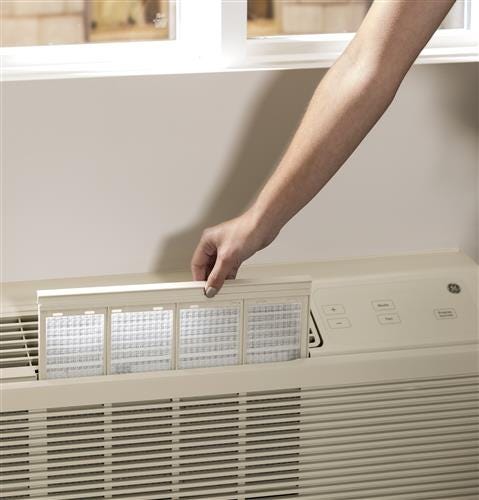

Filter Type	Rigid Frame Slide-Out
Heat - Cool	Yes
Vent Control	3-position
Discharge Grille	2-position
Manual Vent Control	Hidden
- WARRANTY
Parts Warranty	Limited 1-year entire appliance. Limited 5-year sealed refrigerating system
Labor Warranty	Limited 1-year entire appliance. Limited 5-year sealed refrigerating system
- WEIGHTS & DIMENSIONS
Overall Height	16
Approximate Shipping Weight	110
Overall Depth	20 13/16
Overall Width	42
Net Weight	110
