Appliance Depot  |  SKU: AZ65H15DAC (New)

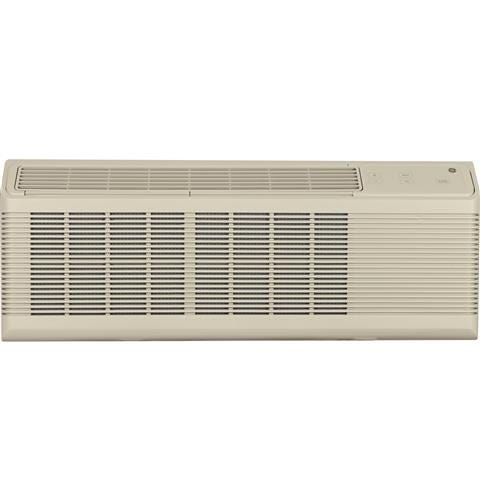

GE Zoneline Heat Pump Unit with Corrosion Protection, 230/208 Volt AZ65H15DAC

$1,532.00
Shipping calculated at checkout.

Features

PRODUCT HIGHLIGHTS

Energy efficiency
10.4/10.4 EER
Play Video

Quiet operation
Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort
Play Video

Electronic touch controls with LED display

Play Video

FEATURES

  • Cooling capacity
    14,500/14,200 BTU
  • Energy efficiency
    10.4/10.4 EER
  • Dehumidification
    4.8 pints/hour
  • Reverse cycle heat
    13,500/13,300 BTU
  • Heat pump efficiency
    3.3/3.3 COP

CAPACITY

Cooling BTUH (MAX) 14400.000000
CFM Indoor Fan Low 290
CFM Indoor Fan High 400
Cooling EER (BTUH / Watt) 10.4/10.4
Heating - Reverse Cycle - BTUH 13500/13300
Dehumidification (pts./hr.) 4.8
Vent CFM (high fan at zero ESP) 44
Cooling BTUH (MIN) 14200

FEATURES

Zoneline Features "Sleep" Mode
"Smart Fan" Fan Cycle Control
3-Stage Heating Design
Auto Power Recovery
Automatic Emergency Heat
Automatic Indoor Frost Control
Central Desk Control Compatibility
Freeze Sentinel
Heat Pump with Resistance Heat Backup
Heat Pump with Supplemental Resistance Heat
Heat Sentinel
Proportional - Integral ID Airflow
Quick Heat Recovery
Random Twist/Length Segment Tangential Blower
Remote Thermostat Compatibility
Reverse Cycle Defrost
Universal Heaters
Weather Protected Electrical Components
Louver Style Reversible
Control Type Standard Microcomputer
Tactile touch pad with LED Display
Discharge Grille 2-position
Fan Speed Selections Hi/Low Cooling
Hi/Low Fan Only
Hi/Low Heating
Sensible Heat Ratio 60%
Power Factor 97
Refrigerant Type R410A
Product Type Packaged Terminal Air Conditioners (PTAC)
Filter Type Rigid Frame
Slide-Out
Manual Vent Control Hidden
Chassis Type Slide-In
Fan Motor 2
Temperature Limiting Electronic 7-Step
Fan Speed Control Yes
Temperature Range 60 - 85 F
Corrosion Treated Yes
Heat - Cool Yes
Electronic Micro Computer Control Yes
Fan Cycle Switch Yes
Rotary Compressor Yes
Heating - Reverse Cycle - COP 3.3/3.3
Vent Control 3-position
Venting Features Concealed Manual Vent Control¶Vent Air Filter¶Outdoor Vent Control - 3 Positions
Heating System Heat Pump

APPEARANCE

Color Appearance Gray

WEIGHTS & DIMENSIONS

Overall Width 42
Approximate Shipping Weight 110
Overall Height 16
Overall Depth 20 13/16
Net Weight 110

POWER / RATINGS

Cooling - Amperes; L.R. 31.5
Heating - Reverse Cycle - Watts 1195/1180
Cooling - Amperes; F.L. - Cooling 6.2/6.7
Cooling - Amperes 6.2/6.7
Cooling - Watts 1390/1360
Heating - Reverse Cycle - Amps 5.4/5.7
Voltage (MIN) 208
Voltage (MAX) 230.000000

WARRANTY

Warranty Notes See written warranty for full details
Labor Warranty Limited 1-year entire appliance
Limited 5-year sealed refrigerating system
Parts Warranty Limited 1-year entire appliance
Limited 5-year sealed refrigerating system

CERTIFICATIONS

Claims & Certifications California Prop 65
