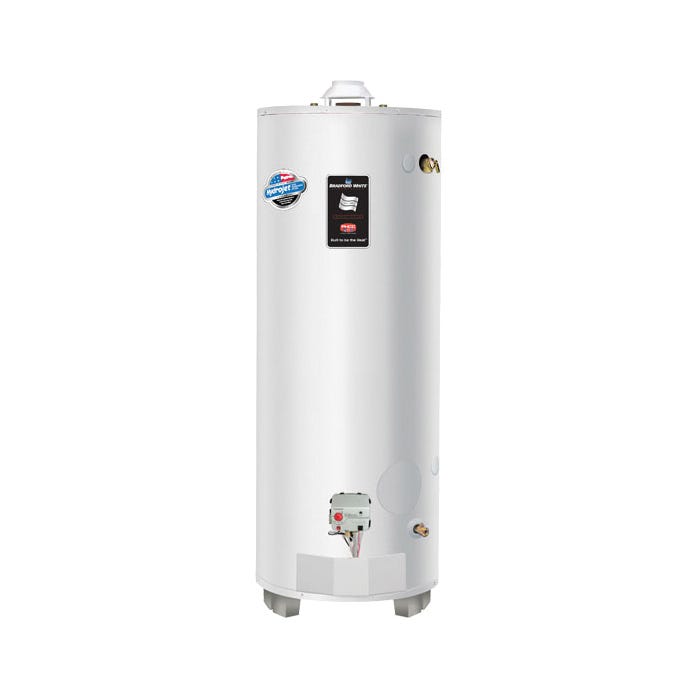

BRADFORD WHITE 75 GALLON 76MBH RESIDENTIAL GAS (PROPANE) ATMOSPHERIC VENT WATER HEATER 62-3/8"H X 26"W RG275H6X
Couldn't load pickup availability
Features
Features
Bradford White Defender Safety System® – 75 Gallon High Input Propane Gas Water Heater
Residential Atmospheric Vent • 6-Year Tank Warranty • 76,000 BTU/Hr
High-input model designed for demanding hot water needs. Features the Defender Safety System® and advanced ICON System® intelligent gas control (millivolt-powered with built-in piezo igniter—no external electricity required) for reliable performance, fast recovery, and enhanced safety.
Key Features
- Bradford White ICON System® — Intelligent gas control with proven millivolt technology and built-in piezo igniter (no external electricity needed)
- Enhanced Performance — Proprietary algorithms for better First Hour Rating and tighter temperature control
- Advanced Temperature Control — Microprocessor maintains consistent water temperature up to 160°F (71°C)
- Intelligent Diagnostics — Exclusive multicolor LED indicates operation status/service required
- Factory-Installed Hydrojet® Total Performance System — Reduces sediment and boosts first-hour delivery
- Vitraglas® Lining — Exclusive enamel for superior corrosion protection
- Side Connections — 3/4" NPT tappings for space heating applications (potable water only)
- Non-CFC Foam Insulation — Reduces heat loss and improves efficiency
- Protective Magnesium Anode Rod — Extra corrosion protection
- 4" Snap Lock Draft Diverter — Efficient venting
- T&P Relief Valve — Factory installed
- Low Restriction Brass Drain Valve — Durable & tamper-proof
- Low NOx Emissions — Less than 40 ng/J
Downloadable Resources
High-input propane power for large households. Contact Appliance Depot for availability, pricing, or installation support.
Specifications
- Product TypeWater Heater
- ASME (Yes/No)False
- BrandBradford White
- Diameter26
- Energy Factor0.59
- Energy Star RatedFalse
- FinishSteel
- Floor to Gas Connection16.44
- Floor to T&P Connection52
- Floor to Top of Heater58.94
- Gas Connection Size0.5
- Height62
- LiningVitraglas
- Mounting EnvironmentIndoor
- Mounts TypeFloor Mount
- Number of Anode Rods1
- Parts Warranty6
- Recovery RatesNot Applicable
- Res/CommResidential
- TOS Code9310
- UL ListedFalse
- Vent Pipe Diameter4
- Warranty6
- Water Connection Size1
- Water Heater FuelGas (Propane)
- Water Heater Nominal Capacity75
- Watsco Heiler Id2277393385402543
- Weight249
- Width26
- Working Pressure150
-
TypeWater Heaters
-
Weight320.0 lb
-
Condition
-
Water Heater FeaturesGas, Atmospheric Vent, Tall
-
