Appliance Depot  |  SKU: GE30L08BSM (New)

GE® 26 Gallon Side Port Lowboy Electric Water Heater GE30L08BSM

$449.00 $499.00
Shipping calculated at checkout.

Features

PRODUCT HIGHLIGHTS

Quick Recovery
Two 5500W heating elements quickly increase water temperature for hot water when you need it
Play Video

FEATURES

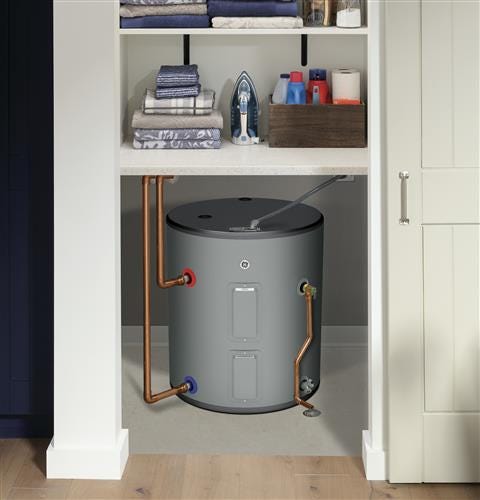

  • Lowboy
    Make the most of tight spaces with a water heater that fits where height is a concern
  • Household Size
    Provide hot water for the whole family of 1 to 3 persons
  • Quick Recovery
    Two 5500W heating elements quickly increase water temperature for hot water when you need it

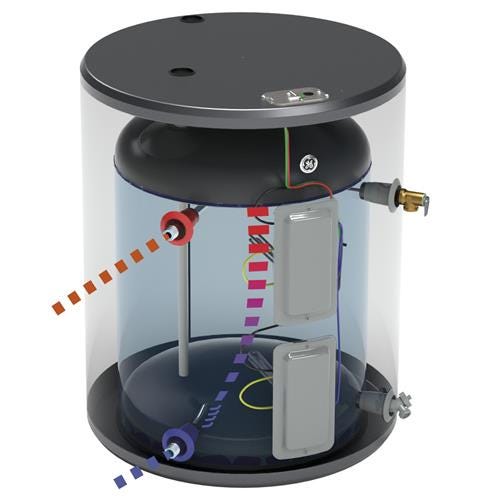

  • Inlet Tube
    Replenishes water from the bottom of the tank to maximize hot water delivery
  • Easy Set Up
    Replace your old water heater quickly and easily using standard water and electrical connections

CAPACITY

Unit Capacity 28 Gallons

FEATURES

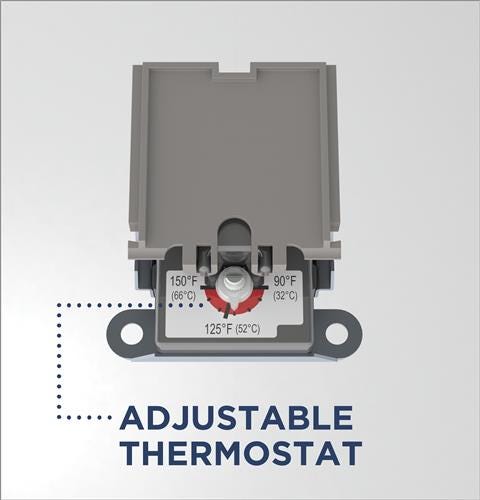

Control Type Thermostat
Temp & Pressure Relief Valve Yes
Rated Capacity 26
Height Description Low Boy with Side Port
Fuel Type Electric
Configuration Lowboy
Installation Location Indoor
Operating Modes Standard Electric
Rated Storage Capacity 26
Drain Valve Type Plastic
GPH Recovery @ 90 Degrees F 25.1
Mobile Home Compatible No
Temperature Setting Factory Default 120° F
Product Type Electric Thermostat
Family Size 1-3 People
Water Connection Location Side
Foam Insulation Yes
Point of Use No
Temperature Setting 90-150° F Range
Insulation Thickness 2.75

APPEARANCE

Color Appearance Gray

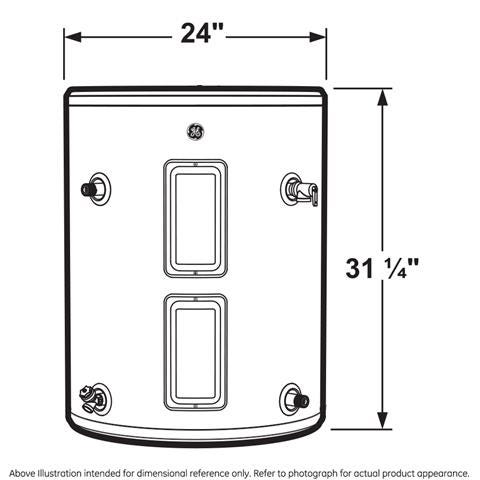

WEIGHTS & DIMENSIONS

Product Height (to top of water inlet/outlet connections) 24.875
Approximate Shipping Weight 114
Overall Width 24
Overall Height 31 1/4
Product Height (to top of unit) 31.25
Net Weight 105
Product Diameter 24
Overall Depth 24
Connection Sizes - Water Inlet (MNPT) 3/4"
Connection Sizes - Hot Water Outlet (MNPT) 3/4"

POWER / RATINGS

Integrated Energy Factor 0.93
Heating - Electric - Heater Watts 5500/5500
Electrical Connection Direct-Wire
Operating Water Pressure 20-125 PSI
Volts/Hertz 240V; 60Hz
First Hour Rate (FHR) 58 Gallons
Voltage (MAX) 240
Electrical Circuit Required 208V/240V 60 Hz Dedicated 30 Amp Min.

WARRANTY

Warranty Notes See written warranty for full details
Parts Warranty 8-year limited
Labor Warranty 1-year limited

CERTIFICATIONS

Claims & Certifications California Prop 65
