Appliance Depot  |  SKU: WSES4530TV (New)

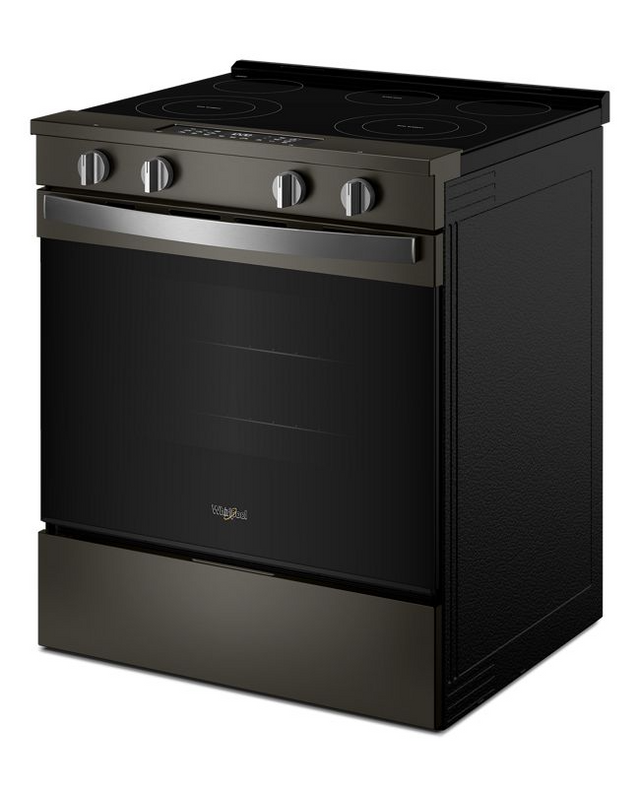

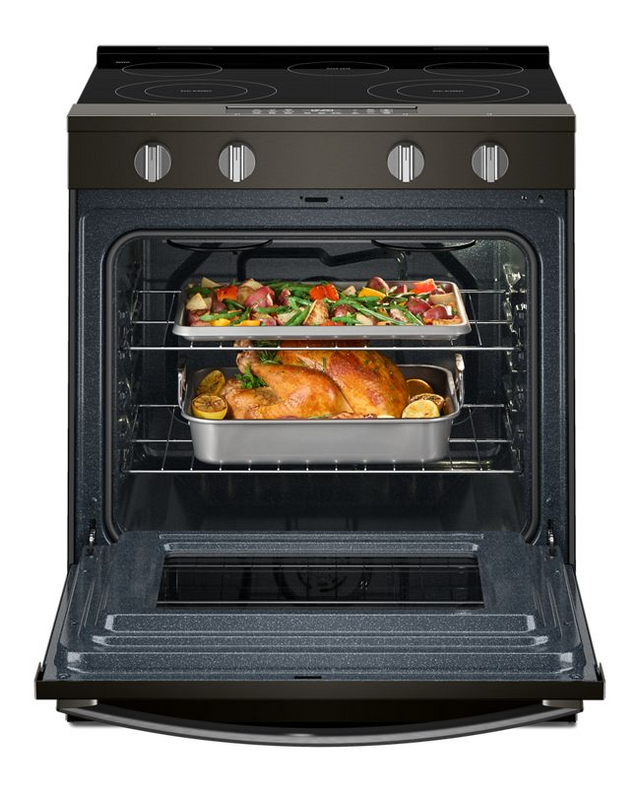

Whirlpool 30-inch Electric Smart Range with Air Cooking Technology and Steam Clean WSES4530TV

$1,398.00 $1,549.00
Shipping calculated at checkout.


Features

Product Description

Experience the difference* of Air Cooking Technology with Air Baking with this 30-inch electric range. Get crispy fast with No Preheat Air Fry or make more feel-good meals with a variety of 7 Cooking Modes. Boil 40% faster with 2 FlexHeat™ Dual Radiant Elements** and prevent soils from building up by regularly using Steam Clean.
*Compared to thermal bake.
**When comparing the 9" element to the standard 6" element on the same unit.

Save MORE $$$
Features
Air Cooking technology
Experience the difference with the dynamic air flow and intense heat of Air Fry and Air Baking
10 Cooking Modes
Take your favorite meals from fresh, fridge or freezer to fabulous with the Air Cooking Technology of No Preheat Air Fry, Air Baking, Air Roast, Air Broil and Air Reheat, or use traditional heating modes like No Preheat Mode, Bake, Slow Cook, Broil, and Keep Warm.
No Preheat Air Fry
Save time* with No Preheat Air Fy. Get the right heat at the right time with our most advanced Air Fry mode. Get fast, crispy results on chicken wings and mozzarella sticks without the guilt. *Compared to WFE550S0LZ
2 FlexHeat™ Dual Radiant Elements
Customize your element size for large or small cookware and boil 40% faster* with two FlexHeat™ Dual Radiant Elements, designed with a 6" inner ring and 9" expandable outer ring. *When comparing the 9" element to the standard 6" element on the same unit.
Steam Clean
Use the Steam Clean setting to quickly and easily loosen light messes inside the oven without harsh chemicals or cleaners—just add water, run the cycle and wipe away.
Air Baking
Go from gooey to golden and get even results when baking on multiple racks with Air Baking. Our high-speed fan optimizes air flow and drives consistent heat throughout the oven. Get golden results on breads, pastries and more.
Air Roast
Seal in flavors and juices for meat and poultry with Air Roast. Our high-speed fan drives air flow to optimize heat through longer cook times. Enjoy the full flavor of hearty dishes like pot roast and whole chicken.
Slow Cook
Heat up all day dishes with Slow Cook. Our high speed fan optimizes air flow to maintain a low, even temperature for longer cook times to thoroughly heat up your food. Tackle your to-do list while soups, pastas and roasts come to temp without the worry.
Broil
Redefine mealtime with Broil to make crispy-melty nachos, juicy-seared meat, toasty grilled cheese and more.
No Preheat Mode
Take preheating off your plate and cook up frozen faves with No Preheat Mode. Simply press a few buttons and let your oven calculate the proper cooking time.
Keep Warm Setting
Use the Keep Warm setting in the oven to help your dishes stay warm until your family is ready to dig in.

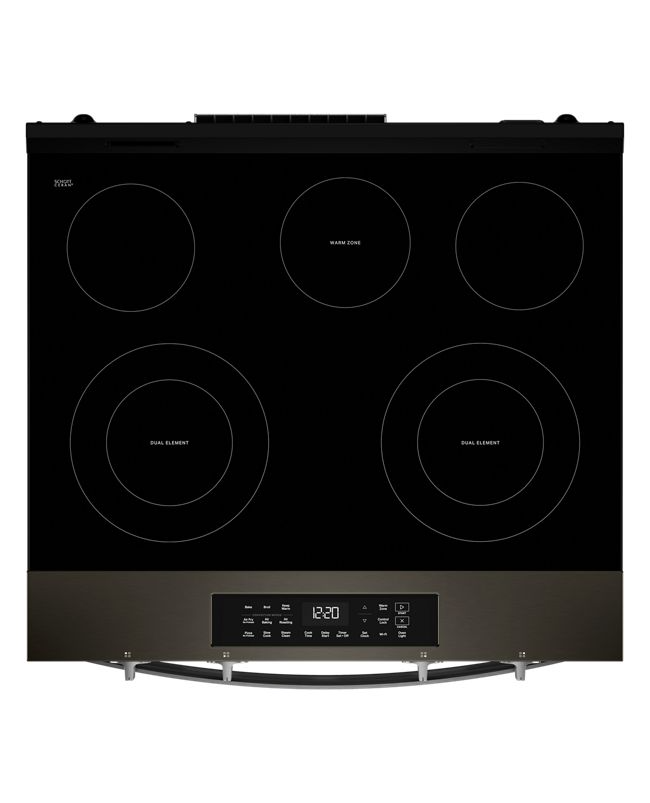

Edge-to-Edge Glass Cooktop
Upgrade your kitchen with the streamlined design of the Edge-to-Edge Glass Cooktop. Creating an easy transition to your countertop and allowing you to move pots and pans easily from your counter to the cooking surface.
Warm Zone
Use the designated Warm Zone to keep your food warm on the cooktop as you prep the rest of your meal.
Smart Range
When you’re busy elsewhere, use your smartphone to get dinner started by remotely preheating the oven. Or, when your hands are full, use your compatible voice-enabled device to adjust the cook time or temperature with a voice command.**Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.
Smart Feature Updates
Stay on top of the latest cooking features and unlock new ones over time. Explore more ways to cook with updates through the Whirlpool app. *Appliance must be connected. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.
ENERGY STAR® Certified
ENERGY STAR® Certified models exceed government standards to help save money on your utility bills.

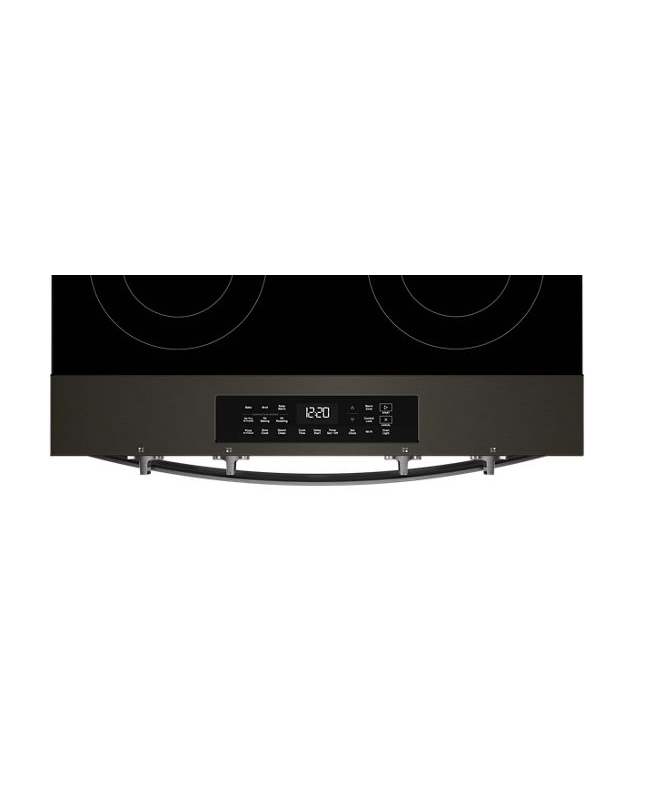

Front Control Design
Easily upgrade your kitchen with the features you want and a premium look that brings controls to the front of the range for easy reach with Front Control Design.
Storage Drawer
A Storage Drawer in the bottom of your range allows easy access to the items you use most and opens up space elsewhere.
Sabbath Mode
Sabbath mode keeps the oven in Bake mode until it can be shut off, allowing you to cook and warm food during the Sabbath. All other oven settings, including temperature displays, sounds, changes in light status and cleaning cycles will be disabled.
Specifications
Certifications
ADA Compliant Yes
CUL No
UL Yes
Prop 65 CA
Energy Star® Qualified Yes

Oven Cavity Details
Number of Oven Racks 2
Convection Functions Air Baking , Air Broil , Air Fry , Air Reheat , Air Roast , Bake, Broil, and Roast , Keep Warm , No Preheat Air Fry , No Preheat Frozen Bake Lasagna , No Preheat Frozen Bake Pizza , Slow Cook , Warm Zone
Oven Rack Type 2 Standard
Broiler Location Top Center
Oven Cleaning Type Steam Clean
Door Removable Yes
Number of Oven Lights 1
Convection Element Type Fan
Oven Light Type Halogen
Number of Rack Guides 5
Hidden Bake Element Hidden
Oven Cooking System Convection
Broiler Element Power 3,400 W
Bake Element Power 2,400 W
Oven Rack Guide Type Embossed
Automatic Convection Conversion Temperature Adjust No
Oven Light Switch Location Oven Control
Oven Rack Front Material Metal
Temperature Probe No
Temperature Sensor Yes

Details
Cooktop Configuration All Burners
Delay Clean No
Fuel Type Electric
Installation Configuration Freestanding
Oven Automatic Shut-Off Yes
Oven Configuration Single Oven
Power On Indicator Light Yes
Power Outage Compatible Yes
Range Configuration Slide-In
Range Type Slide-in
Air Fry Yes
Oven Selections Audible Signal , Bake , Broil , Cancel/Off , Clock , Control Lock , Convect Modes , Cook Time Indicator , Delay Start , Keep Warm/Warm Hold , Language Conversion , No Preheat - Frozen , Rapid Preheat , Reheat , Sabbath Mode , Start Time , Stop Time , Timer
Literature Language English , French , Spanish
Export Packaging No

Element/Burner Details
Center Rear Element-Burner Size 6in.
Center Rear Element-Burner Type Warming
Center Rear Element-Burner Power 100W
Cooktop Element Style Radiant
Left Front Element-Burner Power 3000W
Left Front Element-Burner Size 9in./6in.
Left Front Element-Burner Type Dual
Left Rear Element-Burner Power 1200W
Left Rear Element-Burner Size 6in.
Left Rear Element-Burner Type Single
Number of Cooking Element-Burners 5
Right Front Element-Burner Power 3000W
Right Front Element-Burner Size 9in./6in.
Right Rear Element-Burner Size 6in.
Right Front Element-Burner Type Dual
Right Rear Element-Burner Power 1200W
Right Rear Element-Burner Type Single

Exterior Details
Door Type Glass
Oven Control Knob Type N/A
Oven Control Location Front
Oven Control Type Tap Touch
Oven Window Size Extra Large
Door Lock Yes

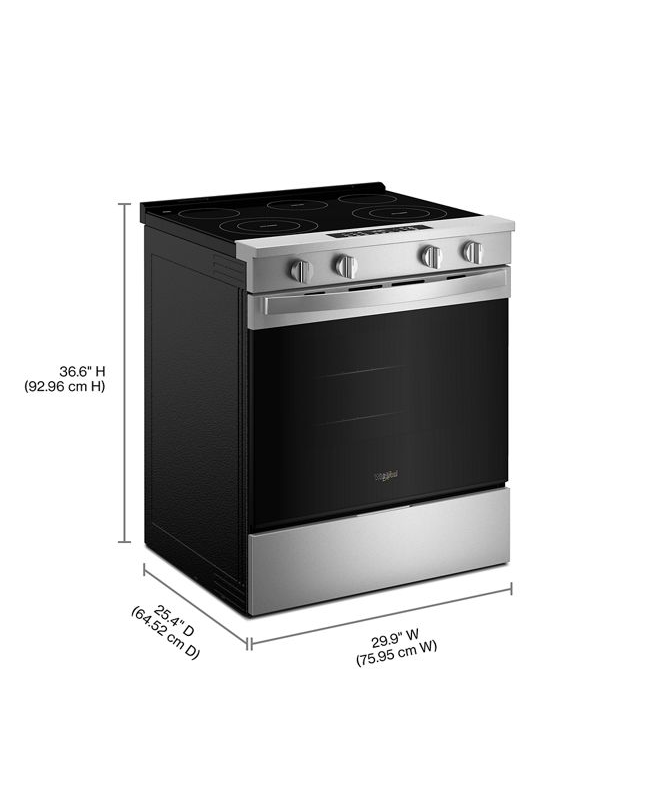

Dimensions
Adjustable Height Yes
Cutout Depth 24 in
Cutout Height 36 in
Cutout Width 30 in
Depth 25.4 in
Depth Closed Excluding Handles 27.4 in
Depth Closed Including Handles 29.1 in
Depth Excluding Doors 25.4 in
Depth With Door Open 90 Degree 47.7 in
Gross Weight 185 lbs
Height 36.6 in
Net Weight 169 lbs
Oven Interior Height 17.9 in
Oven Interior Depth 19 in
Oven Interior Width 24.2 in
Width 29.9 in
Capacity 5.3 cu. ft.
Common Size 30 in
Maximum Height 38.1 in
Minimum Height 36.6 in
Console Language English

Smart Compatibility
Connectivity Amazon Alexa , Android , Google Assistant , Nest , iOS
Smart Appliance Yes
Works With App , Bluetooth , Remote Access , Voice Controlled , WiFi

Controls
Display Color White

Features
Range Features ADA Compliant

Cooktop Details
Cooktop Control Location Front
Cooktop Control Knob Type Plastic
Cooktop Control Type Knobs
Cooktop Surface Material Glass
Griddle Included No
Heating Element On Indicator Light Yes
Hot Surface Indicator Light Yes
Electrical Requirements
Power Cord Included No
Amps 40
Hz 60
Volts 208
Watts 12000
Documents

Dimension Guide

Owner's Manual

Quick Reference Sheet
