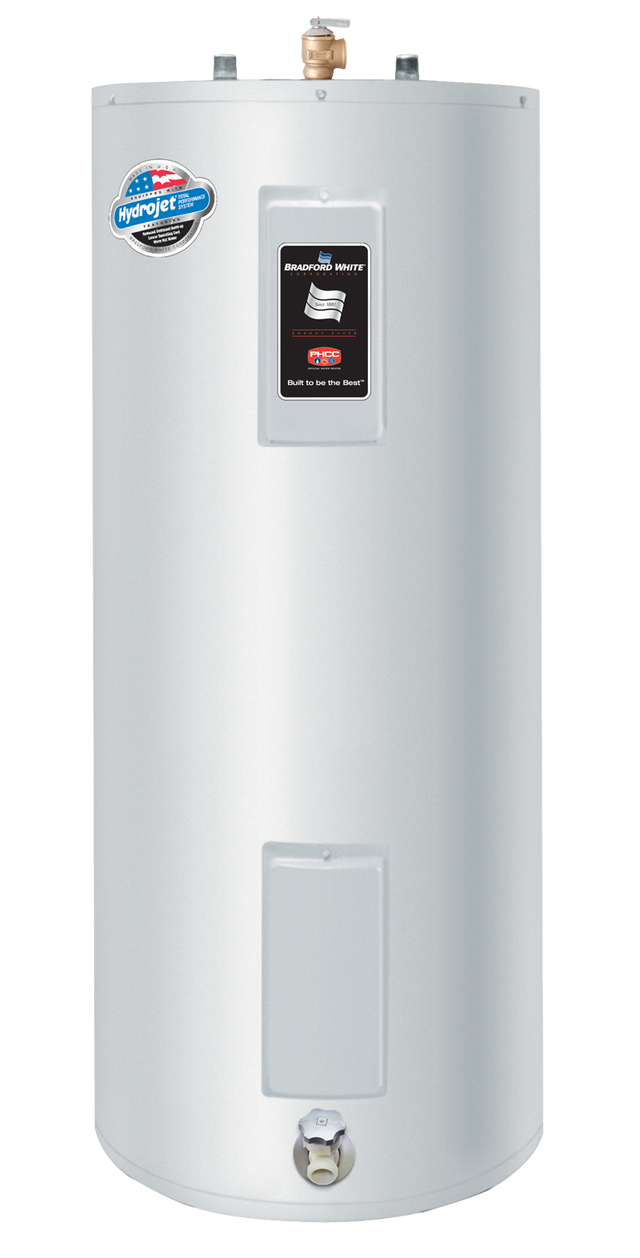

BRADFORD WHITE 40 GALLON RESIDENTIAL ELECTRIC WATER HEATER 240V 4500W 60-3/4"H X 20"W RE340T6-1NCWW

The Upright Electric Models Feature:

■ DOE — All residential storage models meet or exceed efficiency requirements of the Department of Energy, ASHRAE Standard 90.1 b (current standard) and the National Appliance Energy Conservation Act of 1987 recent amendment effective April 16, 2015, which supercedes all state and local efficiency requirements.
■ Fully Automatic Controls — Fast-acting surface-mount thermostats for automatic temperature control. Factory-installed sensitive manual reset energy cutoff for safety to prevent overheating.
■ Direct Heat Transfer with Immersed Elements — Transfers heat directly and efficiently to the water. Screw-in style.
■ Factory-Installed Hydrojet® Total Performance System — Cold water inlet sediment reducing device helps prevent sediment build-up in tank. Increases first hour delivery of hot water while minimizing temperature build-up in tank.
■ Vitraglas® Lining — Bradford White tanks are lined with an exclusively engineered enamel formula that provides superior tank protection from the highly corrosive effects of hot water. This formula (Vitraglas®) is fused to the steel surface by firing at a temperature of over 1600°F (871°C).
■ Non-CFC Foam Insulation — Covers the sides and top of the tank, reducing the amount of heat loss. This results in less energy consumption, improved operation efficiencies, and jacket rigidity.
■ Water Connections —  3⁄4" NPT factory-installed true dielectric fittings extend water heater life and ease installation.
■ Factory-Installed Heat Traps — Design incorporates a flexible disk that reduces heat loss in piping and eliminates the potential for noise generation.
■ Protective Magnesium Anode Rod  — Provides added protection against corrosion for long trouble-free service.
■ Simultaneous and Non-Simultaneous Operation Available — Simultaneous operation indicates when both elements (if equipped) are being heated at the same time. Non-Simultaneous operation indicates when one element is being heated at a time.
■ Voltages Available — 120V, 208V, 240V, 277V, 480V.
■ Single Phase or Three Phase Operation Available — 120V & 277V may only be wired for single phase operation.
■ T&P Relief Valve — Installed.
■ Design evaluated by ETL in accordance with Part 280.707(d) of HUD Mobile Home Construction and Safety Standards for Energy Efficiency.
