Appliance Depot  |  SKU: GG40S08BXR (New)

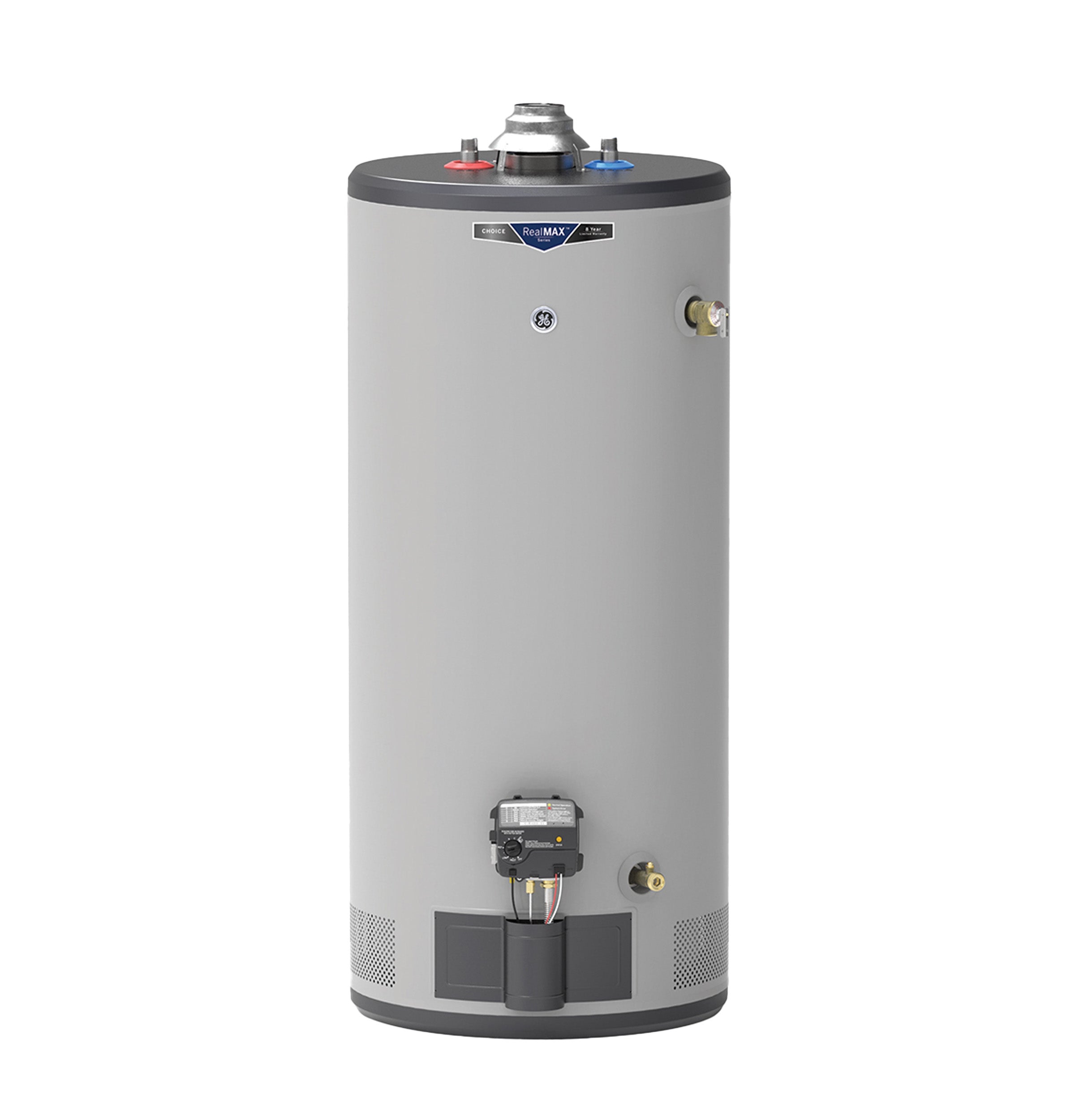

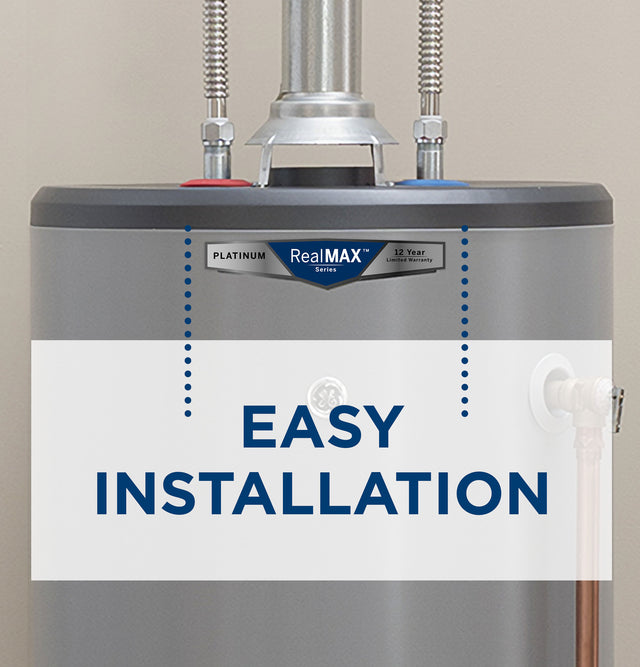

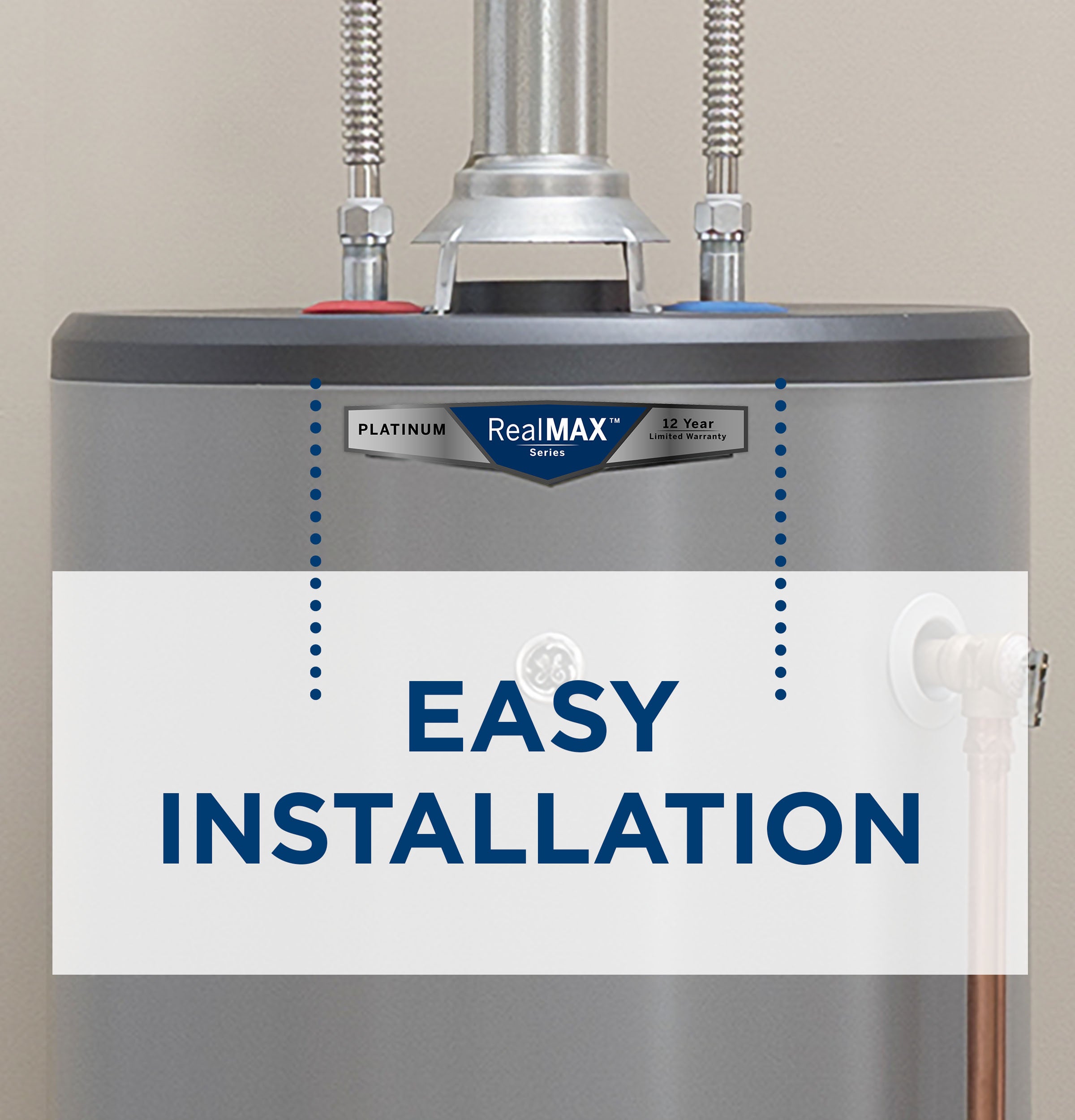

GE RealMAX Choice 40-Gallon Short Natural Gas Atmospheric Water Heater GG40S08BXR

$729.00
Shipping calculated at checkout.

Features

Features

  • Household Size
    Provide hot water for the whole family of 2 to 4 persons

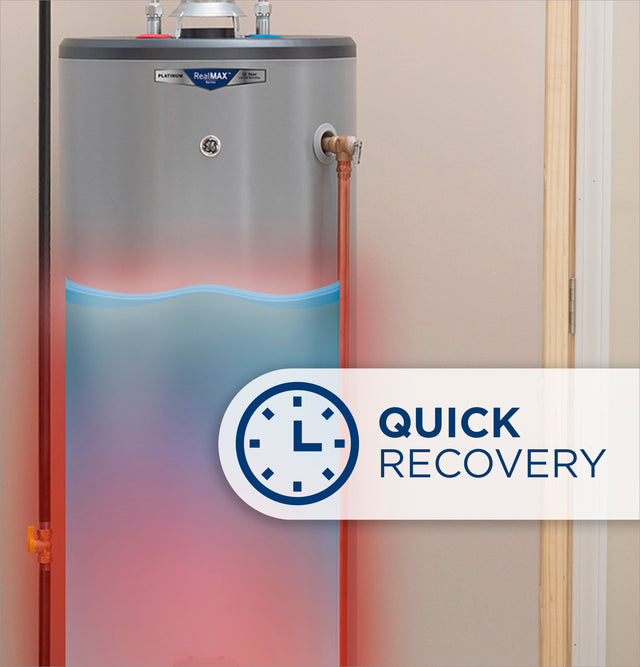

  • Quick Recovery
    Quickly replenish hot water with a max-performance 38K burner

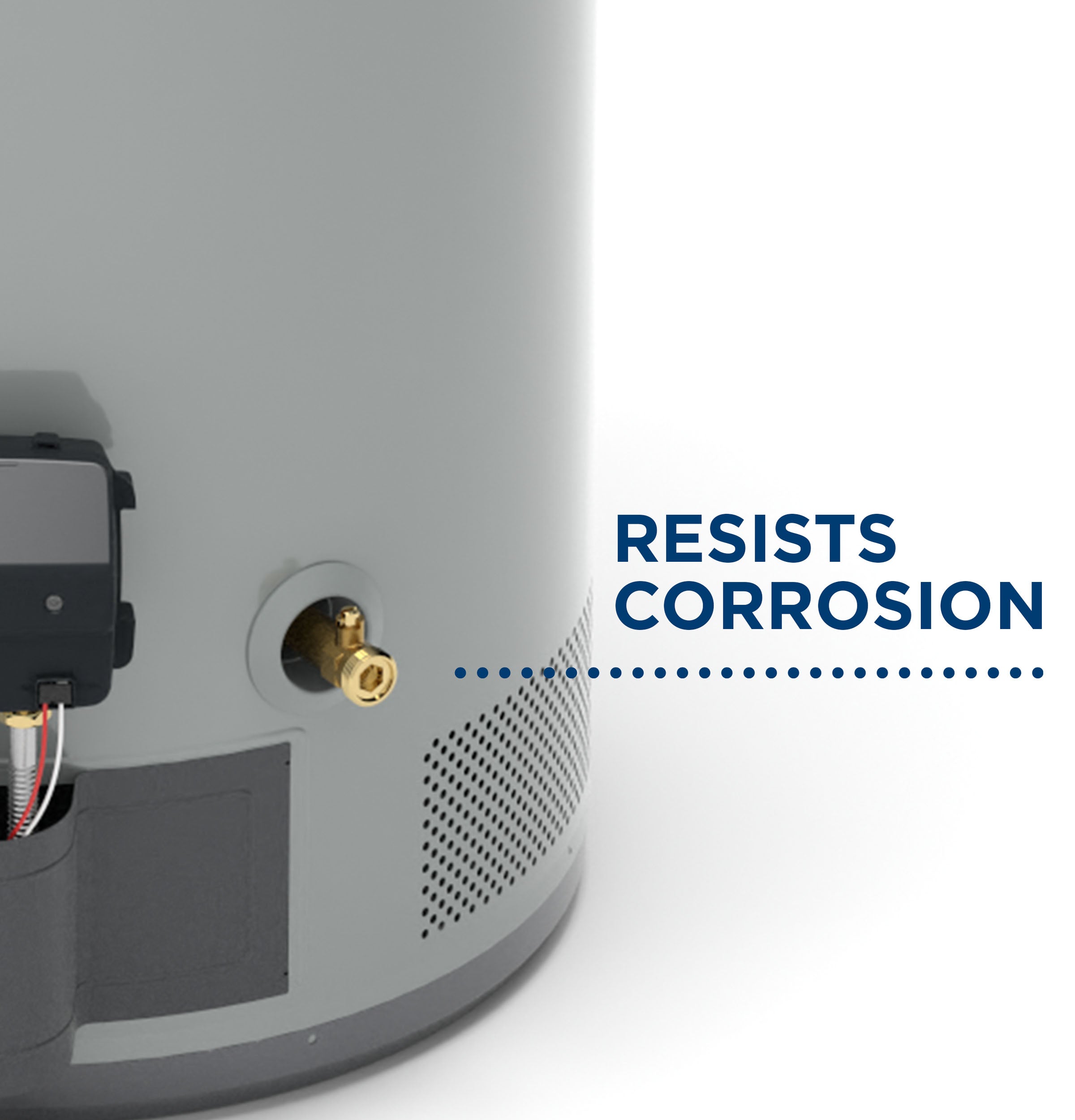

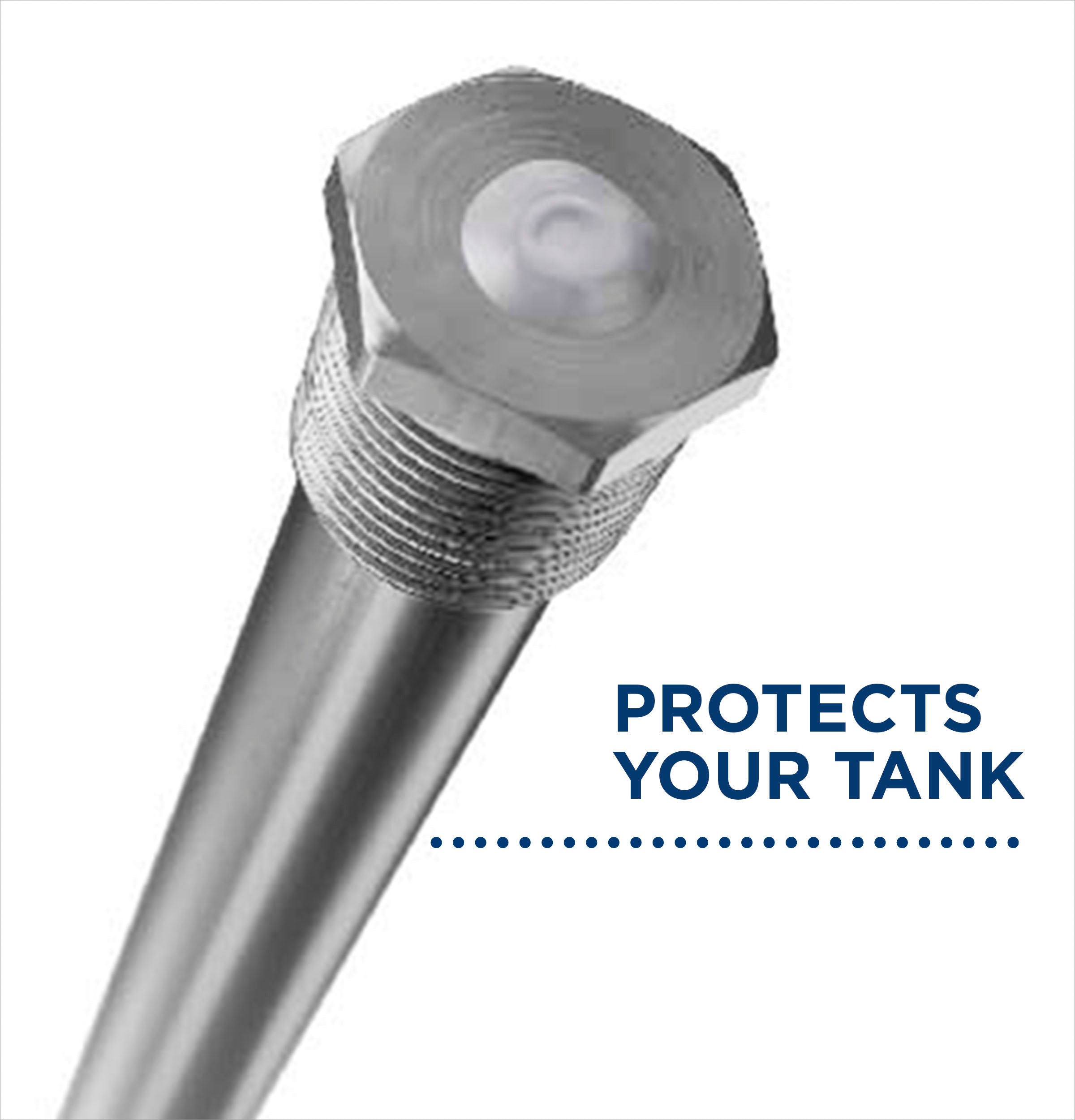

  • Anode Rod
    Durable design offers long-lasting protection against corrosion to extend the life of your water heater tank

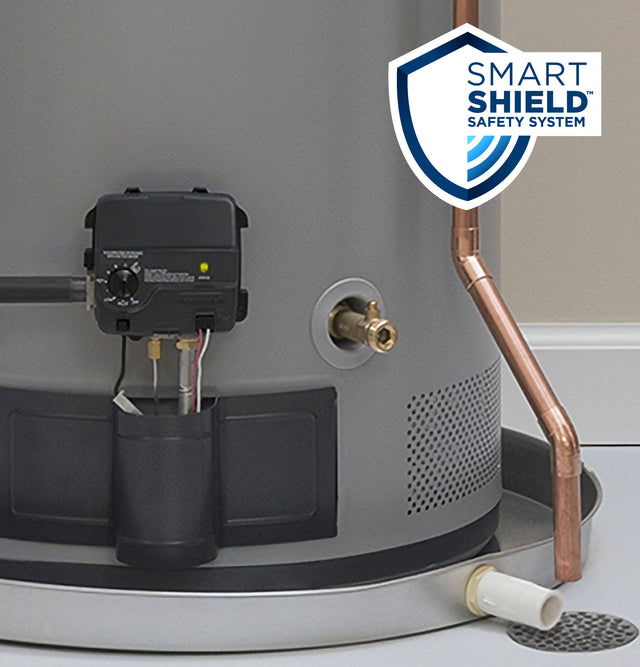

  • SmartShield ™ Safety System
    Monitors the surrounding air and automatically shuts off the unit if abnormal temperatures are detected

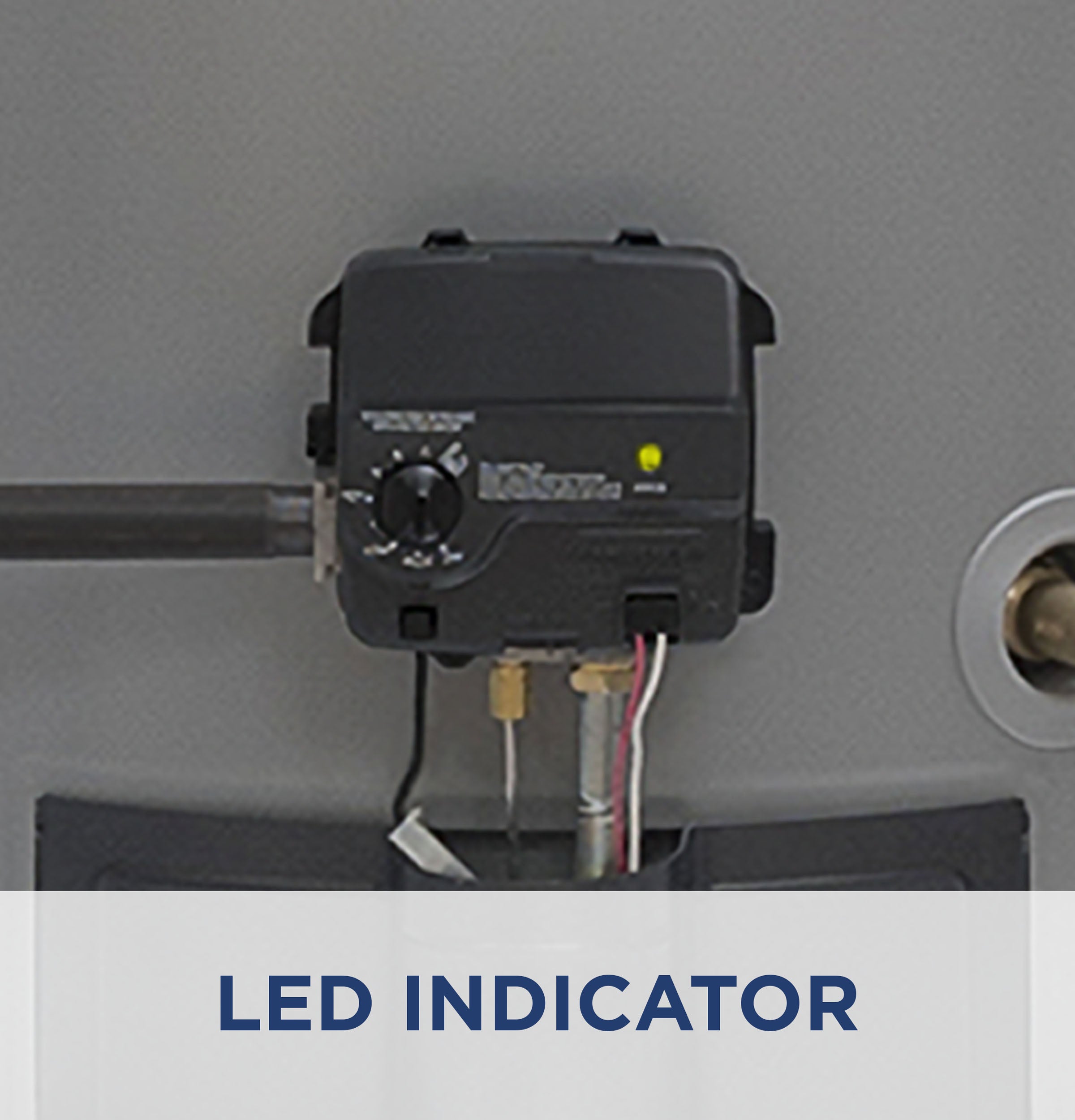

  • Self-Diagnostic
    Monitors and reports on gas system status via LED status indicator

CAPACITY

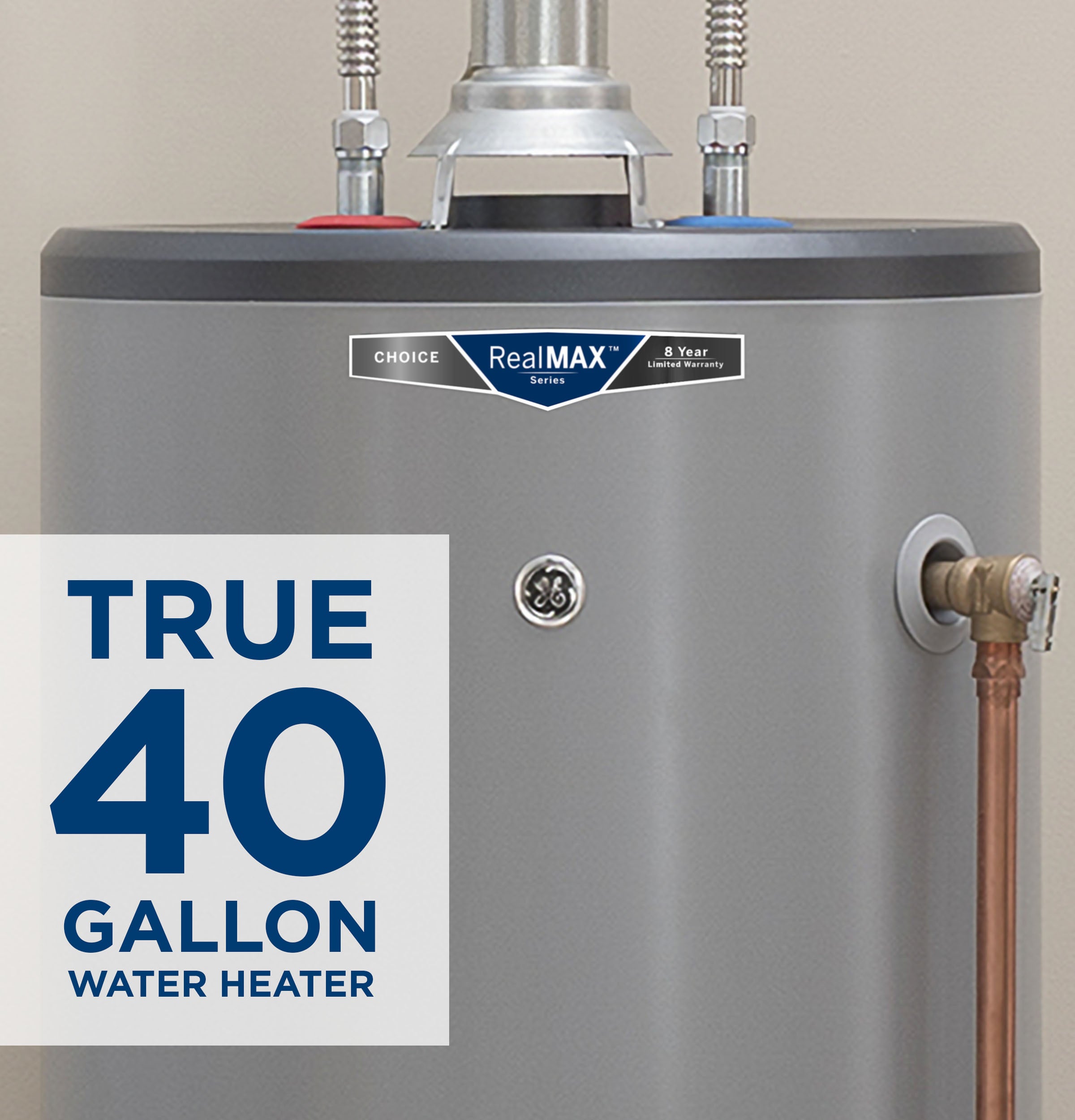

Unit Capacity 40 Gallons

FEATURES

FVIR Safety System Prevents accidental ignition of flammable vapors
Vent Atmospheric
Controls LED Indicator
UEF .64
Temp & Pressure Relief Valve Yes
Height Description Short
Fuel Type Natural Gas
Pilot Light Window / Button Yes
Configuration Short
Drain Valve Type Plastic
Product Type Atmospheric Gas
Family Size 2-5 People
Bin Testing High
Water Connection Location Top
Overheat Protection Dry Burning Protection
Gas Valve Self Powered
Anode Rod Magnesium
Altitude Rating 10100
Temperature Setting 45-160° F Range

APPEARANCE

Color Appearance Gray

WEIGHTS & DIMENSIONS

Product Height (to top of water inlet/outlet connections) 50.375
Height to Gas Control 11.25
Approximate Shipping Weight 140
Overall Width 22
Overall Height 52.25
Product Height (to top of unit) 48.875
Net Weight 133
Product Diameter 22
Overall Depth 22
Vent Size 3" Type B Vent
Connection Sizes - Water Inlet (MNPT) 3/4"
Connection Sizes - Hot Water Outlet (MNPT) 3/4"

POWER / RATINGS

First Hour Delivery GPH 78
Burner BTU Size (k) 38

WARRANTY

Warranty Notes See written warranty for full details

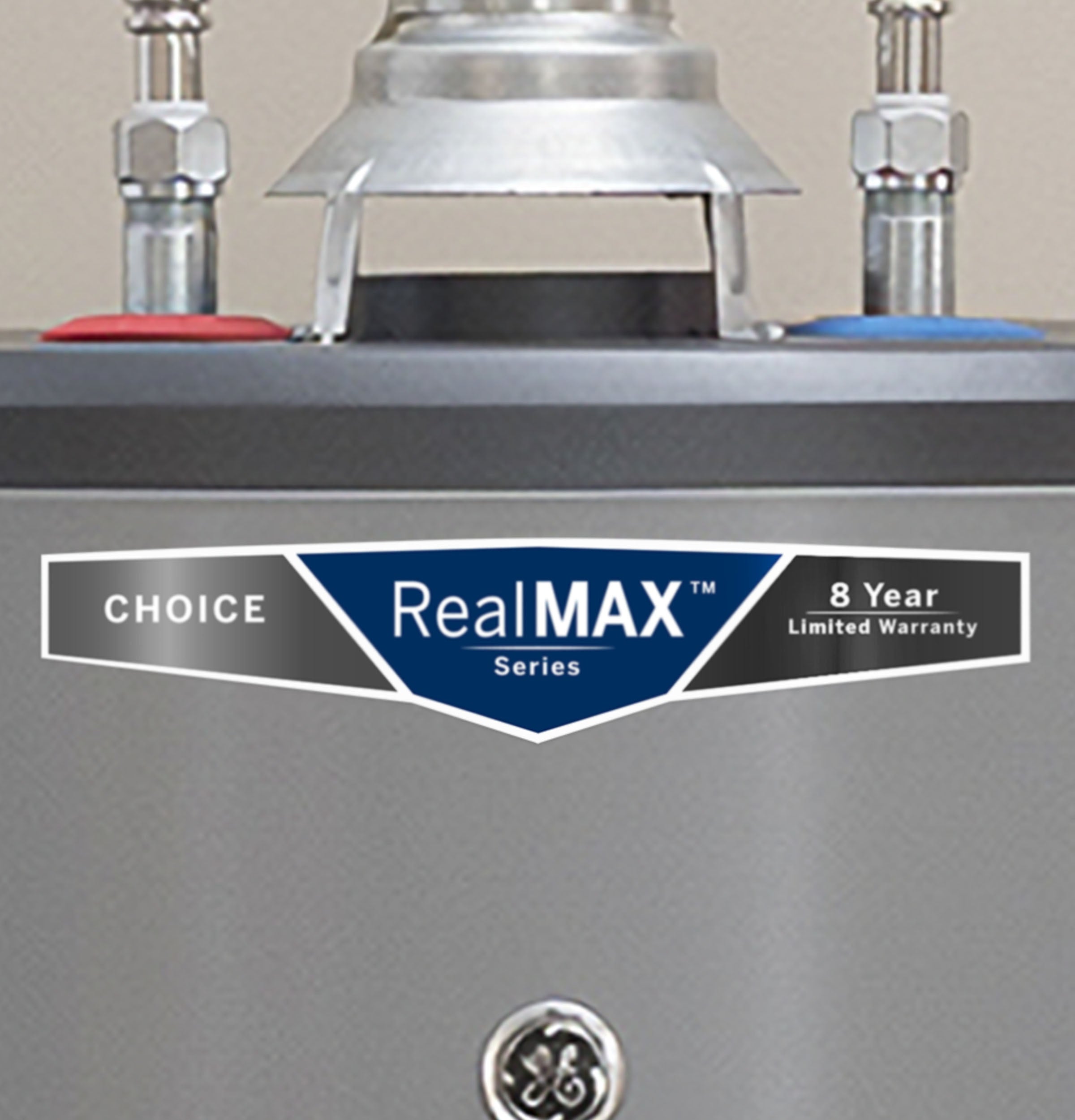

Parts Warranty Limited 8-year tank and parts
Labor Warranty Limited 1-year entire appliance

CERTIFICATIONS

Claims & Certifications Produced In Our American Manufacturing Plants
