Appliance Depot  |  SKU: GE30L08BAM (New)

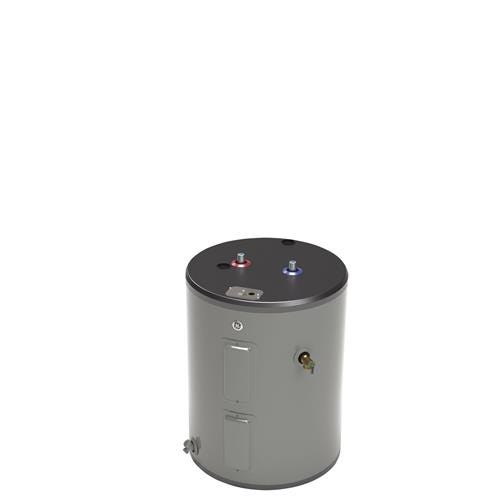

GE Electric Water Heater GE30L08BAM

$468.00 $519.00
Shipping calculated at checkout.

Features

High First Hour Rating (FHR)*
Live comfortably with plenty of hot water. This quality unit delivers a high volume of fully heated water. *First Hour Rating (FHR) test simulates hot water usage and indicates how many gallons of water are delivered in one hour before water temperature drops from 125°F to 110°F.

Three unit sizes
Satisfy any hot water need with a real capacity 50-, 40- or 30-gallon tank, available in tall, short and lowboy configurations.

Two 5500-watt heating elements
Hot Water is reliably delivered with quick water temperature recovery and high First Hour Rating (FHR)*. *First Hour Rating (FHR) test simulates hot water usage and indicates how many gallons of water are delivered in one hour before water temperature drops from 125°F to 110°F.

Heating element material
Expect a longer-lasting unit with heating elements made from stainless steel.

Anode rod
Its durable design protects the tank from corrosion.

Brass valves
With a temperature and pressure-relief valve and a drain valve each made from brass that won’t rust, your unit can be counted on to provide long-lasting service.

Easy setup
Replace your old water heater quickly and easily using standard water and electrical connections.

- NULL
Insulation Thickness 2.75

- CAPACITY
Unit Capacity 30 Gallons

- FILTER
App Filter - Vacation Mode No
App Filter - Tank Warranty 8 year limited
App Filter - Product Type Water Heaters Electric Standard
App Filter - Capacity Water Heater 30-39 gallons
App Filter - Tank Diameter 22 in. and above

- APPEARANCE
Color Appearance Gray

- POWER / RATINGS
Operating Water Pressure 20-125 PSI
Electrical Circuit Required 208V/240V 60 Hz Dedicated 30 Amp Min.
Heating - Electric - Heater Watts 5500/5500
Voltage (MAX) 240.0
Volts/Hertz 240V; 60Hz
First Hour Rate (FHR) 52 Gallons
Energy Factor 0.93
Electrical Connection Direct-Wire

- WARRANTY
Parts Warranty 8-year limited
Labor Warranty 1-year limited
Warranty Notes See written warranty for full details

- WEIGHTS & DIMENSIONS
Product Diameter 24
Product Height (to top of unit) 31 1/4
Approximate Shipping Weight 114
Connection Sizes - Hot Water Outlet (MNPT) 3/4"
Connection Sizes - Water Inlet (MNPT) 3/4"
Net Weight 105
Product Height (to top of water inlet/outlet connections) 32 7/8

- FEATURES
Temp & Pressure Relief Valve Yes
Foam Insulation Yes
Installation Location Indoor
Temperature Setting Factory Default 120° F
Operating Modes Standard Electric
Mobile Home Compatible No
Rated Storage Capacity 26
Fuel Type Electric
Temperature Setting 90-150° F Range
Drain Valve Type Plastic
GPH Recovery @ 90 Degrees F 25.1
Control Type Thermostat
Point of Use No
Height Description Low Boy with Top Port
Family Size 1-2
