Appliance Depot  |  SKU: AZ45E15EAC (New)

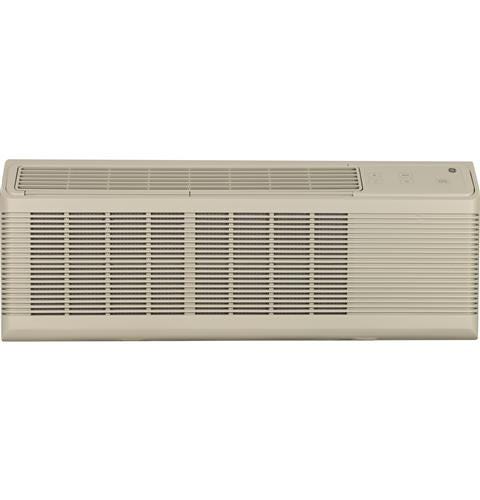

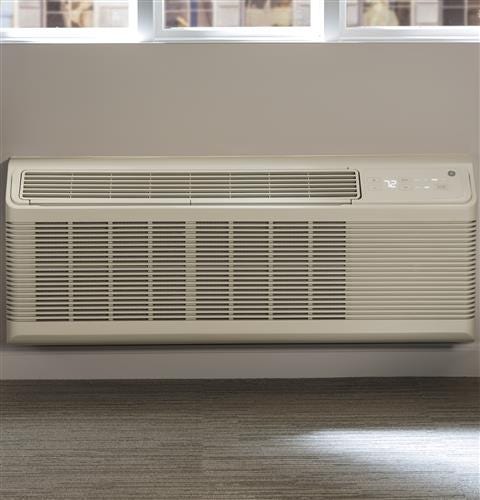

GE Zoneline® Cooling and Electric Heat Unit with Corrosion Protection, 265 Volt AZ45E15EAC

$1,510.00
Shipping calculated at checkout.

Features


Cooling capacity
14,900 BTU

Energy efficiency
10.7 EER

Dehumidification
4.6 pints/hour

Indoor fan CFM (high/low)
449/300

Fresh air vent CFM (fully open high fan)
47

Quiet operation
Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort

Corrosion resistant
Extends life of the unit in sea coast areas/corrosive environment


Owners Manual
Quick Specs
Installation Guide








































































































































































































- CLAIMS & CERTIFICATIONS
AHRI

UL
NRCAN
cUL


- POWER / RATINGS
Cooling - Watts 1390
Power Factor 98
Voltage (MAX) 265.0
Cooling - Amperes; L.R. 26.0
Cooling - Amperes; F.L. - Cooling 5.4


- CAPACITY
CFM Indoor Fan High 449
CFM Indoor Fan Low 300
Vent CFM (high fan at zero ESP) 47
Cooling BTUH (MIN) 14900.0
Cooling EER (BTUH / Watt) 10.7
Dehumidification (pts./hr.) 4.6


- FEATURES
Louver Style Reversible

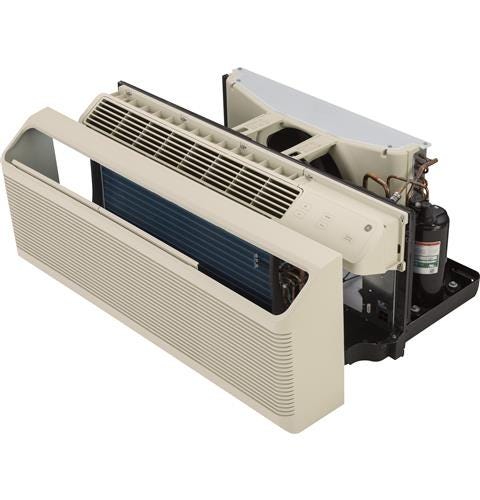

Chassis Type

Slide-In
Rotary Compressor

Yes
Fan Speed Control Yes
Electronic Micro Computer Control Yes
Fan Motor 2
Zoneline Features "Smart Fan" Fan Cycle Control
Heat Sentinel
Freeze Sentinel
Automatic Indoor Frost Control
Universal Heaters
Auto Power Recovery
Remote Thermostat Compatibility
Central Desk Control Compatibility
Proportional - Integral ID Airflow
Random Twist/Length Segment Tangential Blower
Weather Protected Electrical Components
"Sleep" Mode
LCDI Power Cord
Venting Features Concealed Manual Vent Control
Vent Air Filter
Outdoor Vent Control - 3 Positions
Temperature Limiting Electronic 7-Step
Sensible Heat Ratio 59%

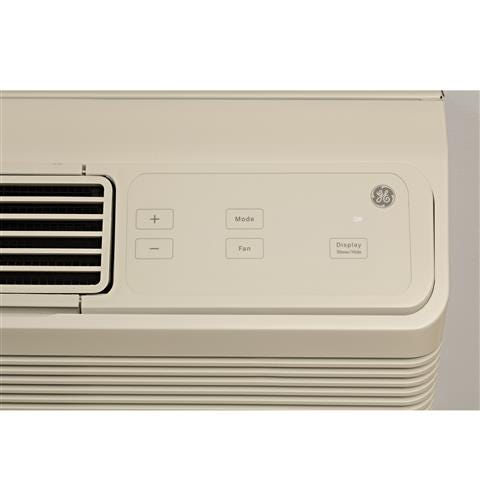

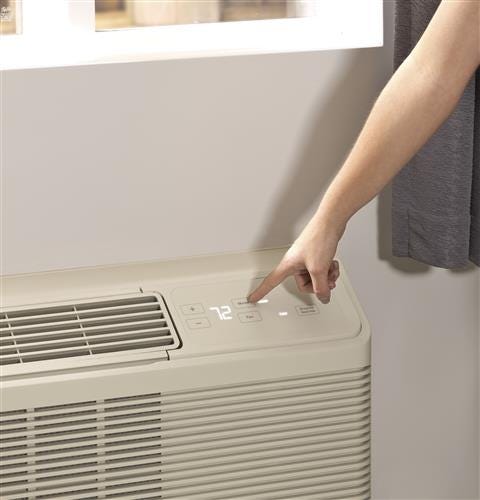

Control Type Coverless Backlit White LED Touch Controls
Fan Cycle Switch Yes
Fan Speed Selections Hi/Low Cooling
Hi/Low Heating
Hi/Low Fan Only
Temperature Range 60 - 85 F

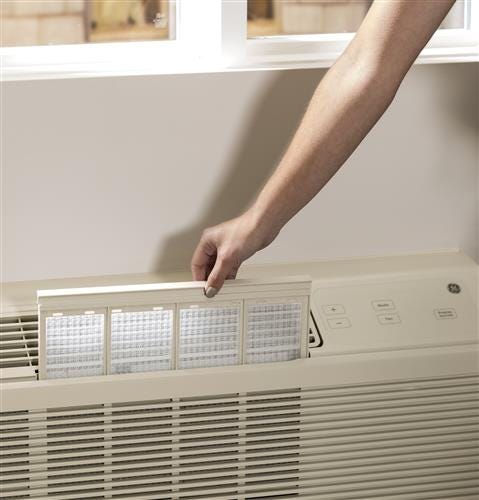

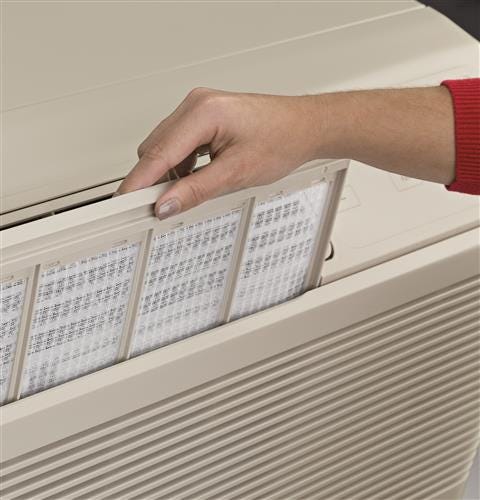

Filter Type Rigid Frame
Slide-Out
Heat - Cool Yes
Vent Control 3-position
Discharge Grille 2-position
Manual Vent Control Hidden

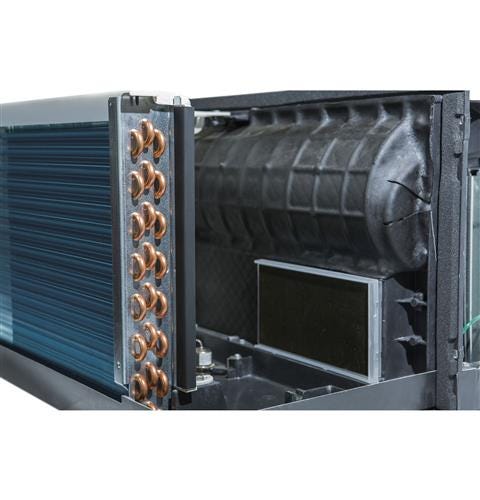

Corrosion Treated Yes


- WARRANTY
Parts Warranty Limited 1-year entire appliance. Limited 5-year sealed refrigerating system
Labor Warranty Limited 1-year entire appliance. Limited 5-year sealed refrigerating system


- WEIGHTS & DIMENSIONS
Overall Height 16
Approximate Shipping Weight 110
Overall Depth 20 13/16
Overall Width 42
Net Weight 110
