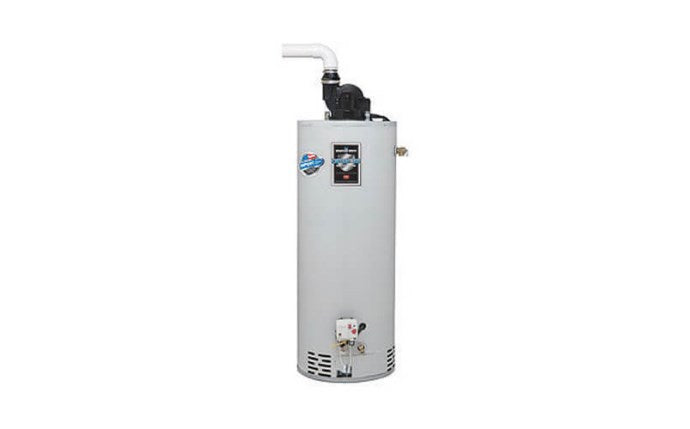

Bradford White 50-Gallon 40MBH Residential Gas (Natural) Power Vent Water Heater 67"h x 22"w Energy Star RG2PV50T6N19
Couldn't load pickup availability
Features
Features
Bradford White 50-Gallon Natural Gas Power Vent Water Heater
The Bradford White TTW® Defender Safety System® water heater combines a 50-gallon nominal tank capacity with a 40,000 BTU/hr natural gas input for residential hot water needs. This tall, indoor floor-mounted model features power venting, a Vitraglas® tank lining, and a steel finish.
Designed for a 120-volt, single-phase electrical connection, this water heater includes a power cord and carries a 6-year tank warranty and a 6-year parts warranty.
Quick Overview
- Capacity: 50-gallon nominal tank
- Fuel: Natural gas
- Heating Input: 40,000 BTU/hr
- Venting: Power vent with a listed 2-inch vent pipe diameter
- Electrical: 120 volts, single phase; power cord included
- Tank Lining: Vitraglas®
- Installation: Indoor, floor-mounted residential use
- Warranty: 6-year tank and 6-year parts coverage
Product Highlights
- TTW® Power Vent Design: A natural gas water heater with power venting for installations that meet the manufacturer's venting requirements.
- Defender Safety System®: Features Bradford White's branded safety system.
- Vitraglas® Tank Lining: Includes Bradford White's Vitraglas® lining.
- Included Power Cord: Supplied with a power cord for its 120-volt, single-phase electrical connection.
Specifications
| Brand | Bradford White |
|---|---|
| Product Type | Water Heater |
| Application | Residential |
| Nominal Capacity | 50 gallons |
| Fuel Type | Natural gas |
| Heating Input | 40,000 BTU/hr |
| Venting Type | Power vent |
| Vent Pipe Diameter | 2 inches |
| Electrical Supply | 120 volts, single phase |
| Power Cord | Included |
| Tank Lining | Vitraglas® |
| Finish | Steel |
| Installation Environment | Indoor |
| Mounting Type | Floor mount |
| Diameter | 22 inches |
| Floor to Top of Heater | 57.56 inches, per supplied specifications; verify against exact model |
| Floor to Gas Connection | 11.5 inches |
| Floor to T&P Connection | 50.56 inches |
| Gas Connection Size | 1/2 inch |
| Water Connection Size | 3/4 inch |
| Working Pressure | 150 psi |
| Listed Weight | 173 lb |
| Tank Warranty | 6 years |
| Parts Warranty | 6 years |
| ASME | No, per supplied specifications |
| UL Listed | No, per supplied specifications |
Manufacturer Documents
- Installation & Operation Manual (PDF)
- Replacement Parts List (PDF)
- Service Manual (PDF)
- Product Specification Sheet (PDF)
These documents may cover multiple models. Confirm the exact model specifications, dimensions, venting requirements, installation clearances, and warranty terms in the manufacturer's documentation before purchase or installation. Installation must comply with manufacturer instructions and applicable local codes.
-
